Description

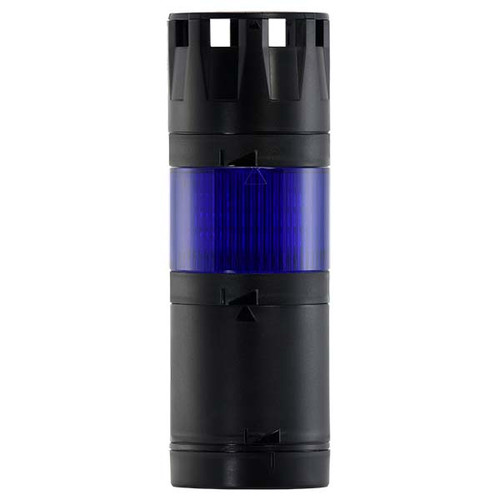

The CTI SL3-BUZZ-M is the 105 dB buzzer module for the CTI StackLight 3 stack light. It adds an audible alarm to a StackLight 3 and can be used to complete a custom configuration or replace the buzzer on an existing unit.
Key specifications
- Component: StackLight 3 buzzer module, 105 dB
- Sound output: 105 dB at 3.3 ft
- 7 selectable tone patterns; 2800 temporal pattern is the default
- Current draw: 35 mA at +24 VDC; 25 mA at 120 VAC
- Interchangeable between 24V AC/DC and 120 VAC StackLight 3 bases
- Separate horn and light circuits allow multiple wiring configurations
- Protection: IP66/67, UL Type 4/4X/13; corrosion, weather and washdown safe
- Operating temperature: -22°F to +158°F; approvals UL, cUL, CE; 2-year warranty
Common questions
Is the buzzer already included in a configured StackLight 3?
Yes. CTI includes the 105 dB buzzer with all StackLight 3 configurations; this module is sold separately for custom builds or replacement.
Specifications are based on the CTI (Calibration Technologies) product page for Stacklight 3 Components. Confirm fit, ratings and application requirements before ordering.
Disclaimer: The image shown is a general representation of the product category and may not depict the exact part number offered. Actual product appearance, specifications, and configuration may vary.
